Lenco 18" x 14" Standard Performance Trim Tab Kit w/o       Switch Kit 12V [15040-101]

Lenco 18" x 14" Standard Performance Trim Tab Kit w/o Switch Kit 12V [15040-101]

Lenco Marine

  • $1,008.95
    Unit price per
  • Save $368.92

Only 0 left!

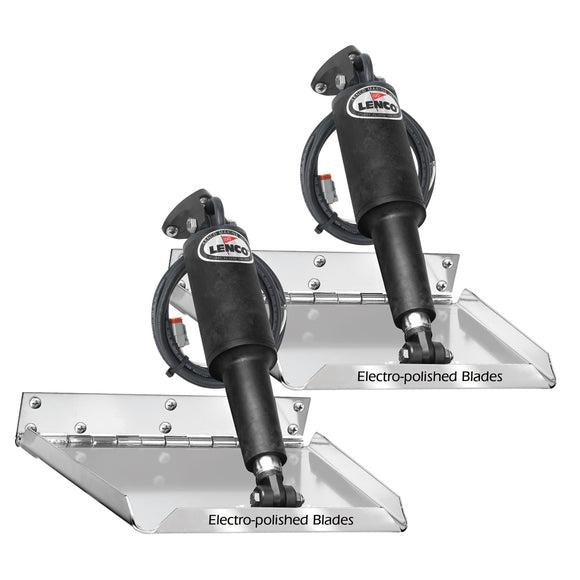

18" x 14" Standard Performance Trim Tab Kit w/o Switch Kit- 12V

Upgraded electro-polished trim blades with stouter 1/4" diameter hinge pin make these Performance Trim Tab Kits a cut above the base level Lenco Standard Mount Kits. Equipped with the same fast response electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges (the 16" x 12" and the 18" x 14" have an 85 degree inside taper) and 1/4" diameter hinge pin. Kit includes Standard Actuators with 5/16" SS bolts. The actuators mount at the trailing edge of the blades

Kit Contents:

  • 2 each of 12-gauge stainless steel Electro-Polished trim tab blades
  • 2 each of #15054-001 actuators with 6' lead and Deutsch plugs
  • 2 each of #30133-103 20' actuator extension wiring harnesses
  • 2 each of #15085-001 (#116) upper mounting bracket with gland seal
  • 2 each of #50014-001 (#119) lower mounting bracket
  • 1 each of the Lenco owner’s / installation manual
  • All necessary stainless steel mounting hardware

Specifications:

  • Suggested Boat Length: 22' to 40'
  • Length of Tab: 18"
  • Width of Tab: 14"
  • Minimum Transom Height: 11"
  • Blades: 12 Gauge Stainless Steel
  • Finish: Electro-Polished
  • Switch Kit: Sold Separately
  • Class: Fuel Efficient
  • Compliance: CE Certified
  • Compatibility: Any Boat
  • Actuators: 12-volt

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


Brochure (pdf)
