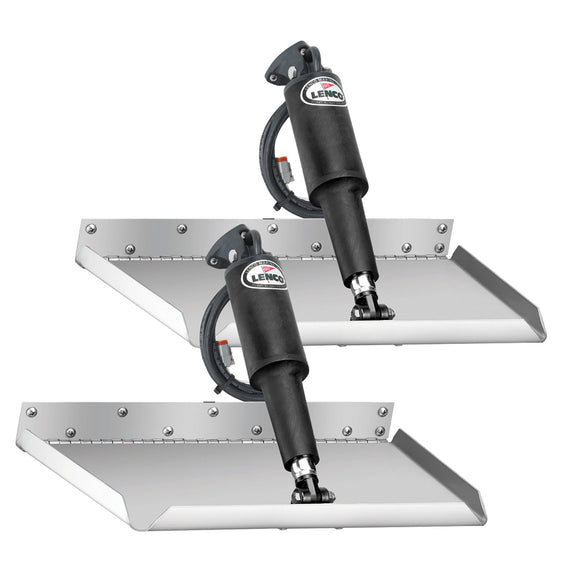

Lenco 12" x 9" Edge Mount Kit without Switch Kit 12V [15015-101]
12" x 9" Edge Mount Trim Tab Kit without Switch Kit -12V
Lenco Electric Edge Mount Trim Tab Kits make your boat ride smoother, dryer, faster and with increased safety whether on a small skiff or a large yacht. The Lenco ball screw design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Edge Mount actuators mount at the trailing edge of the plane, requiring 4" (10.16 cm) less transom height than Lenco standard mount trim tabs.
- 2 each of 12-gauge stainless steel trim tab blades
- 2 each of #15054-001 actuator with 6' leads & Deutsch plugs
- 2 each of #30133-103 20' actuator extension wiring harnesses
- 2 each of #15085-001 (116) upper mounting brackets with gland seal
- 2 each of #50014-001 (119) lower mounting brackets
- 1 each of the Lenco owner’s / installation manual
- All necessary stainless steel mounting hardware
- Suggested Boat Length: 14' to 18'
- Length of Tab: 12"
- Width of Tab: 9"
- Hinge Height: 2"
- Minimum Transom Height: 11"
- Blades: 12 Gauge Stainless Steel
- Finish: Smooth
- Switch Kit: Sold Separately
- Class: Fuel Efficient
- Compliance: CE Certified
- Compatibility: Any Boat
- Actuators: 12-volt
