Lenco 101XD Extreme Duty Actuator - 12V - 2-1/4" Stroke - 5/16" Hardware [15055-001]

Lenco 101XD Extreme Duty Actuator - 12V - 2-1/4" Stroke - 5/16" Hardware [15055-001]

Lenco Marine

  • $292.95
    Unit price per
  • Save $97.11

Only 0 left!

101 XD Actuator- 12 Volt- 2-1/4  Stroke with Mounting Hardware

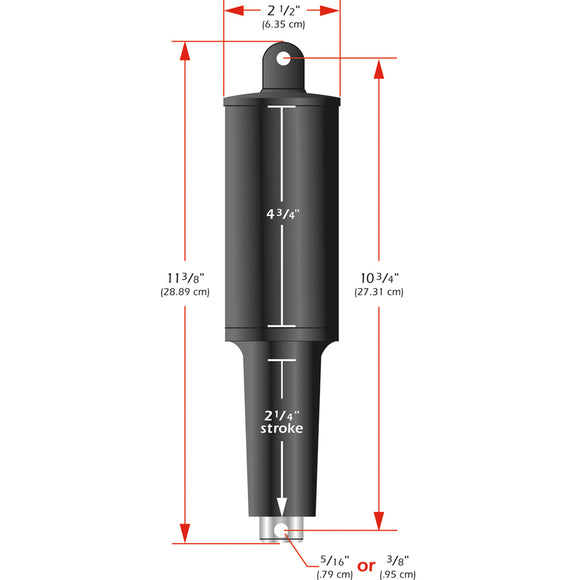

The 101 XD Actuator is used mostly with HD, XD, High Performance and Super Strong tabs. 2.25 stroke. Overall length (tip to tip) is 113/8 inches.   Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.


Specifications:

  • Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
  • Stronger top cap and mounting clevis design
  • Improved pressure-tight torx screws
  • Integrated wiper seal at actuator base
  • Molded-in brass thrust bearing design
  • Thicker and stronger motor housing wall
  • Improved O-Ring design for more consistent seal
  • Over-molded cable providing a stronger tighter seal
  • Upper mounting bracket with gland seal

Features:

  • Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
  • Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
  • Lenco Actuator connections use waterproof "Plug & Play" Deutsch connectors eliminating the possibility of water intrusion.
  • 12 Volt
  • 5/16" mounting hardware
  • 6 foot cable

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


Quick Guide (pdf)
