Blue Sea 8411 AC 8 Position [8411]

Blue Sea 8411 AC 8 Position [8411]

Blue Sea Systems

  • $245.95
    Unit price per
  • Save $88.41

Only 6 left!

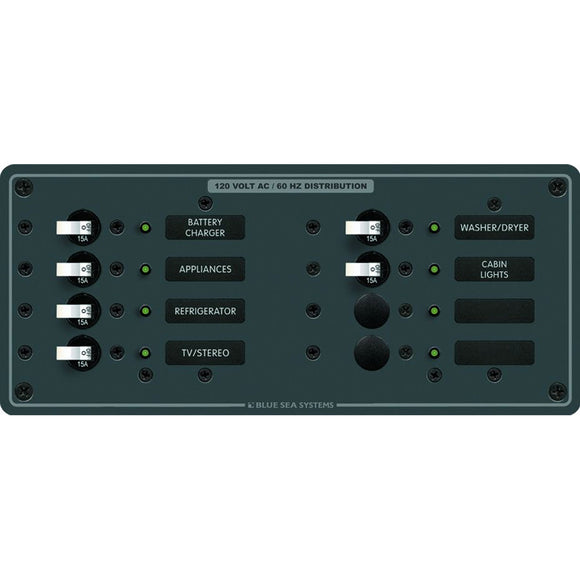

AC 8 Position


  • (6) 15A Single Pole Circuit Breakers



    • All hot, neutral, and safety ground buses installed, fully pre-wired
    • All circuit label positions are backlit on standard panels - No kit required
    • "ON" indicating LEDs installed in all circuit positions
    • Maximum panel amperage - 100 Amperes
    • MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance
    • Two-part polyurethane slate gray finish
    • Heavy 1/8" aluminum 5052 alloy
    • Industry standard height and width
    • Countersunk mounting holes throughout
    • Detailed installation instructions and cutout template included
    • Includes set of 30 common Large Format Labels
    • Over 500 individual labels available

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Voltage: 120v
    • AC/DC: AC
    • Max Breaker Quantity: 8
    • Box Dimensions: 4"H x 9"W x 12"L WT: 2.85 lbs
    • UPC: 632085084110
